App Details Screen

Understand the App Details Screen in Humanitec.

Overview

The App Details Screen is the control centre of an App. From here you can update configuration, make deployments in various environments, inspect configuration history and access information on workloads and resources running in the App.

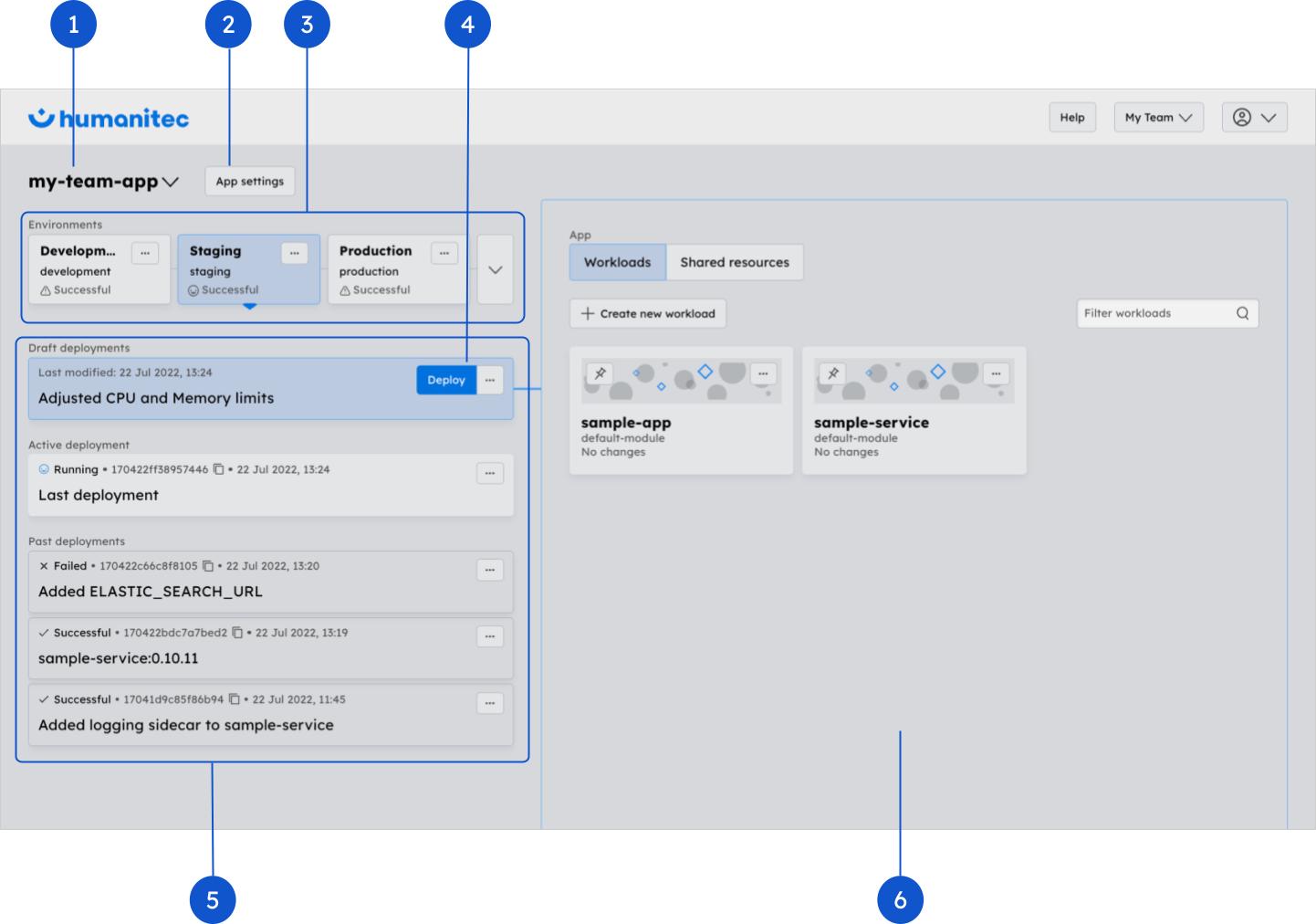

The App Details Screen
  1. The App switcher shows the name of the current active App. Clicking on it allows you to switch to other Apps you have access to.

  2. Clicking the App Settings button opens the App Settings Screen for the active App.

  3. The Environment selector shows the current active Environment in the screen. You can switch active Environments by clicking on them or selecting them with the 🔽 at the right hand end.

  4. The Deploy button will deploy or re-deploy the current active Deployment or Draft into the active Environment.

  5. The Draft & Deployment list shows the currently active Draft or Deployment. Clicking on a Draft or Deployment causes the Workloads and Shared Resources area to update to the selected item.

  6. The Workloads and Shared Resources area shows the workloads and shared application resources configured for the active App in the selected Deployment or Draft.

Draft & Deployment list

The Draft & Deployment list controls the version of the App being displayed in the Workloads and Shares Resources area.

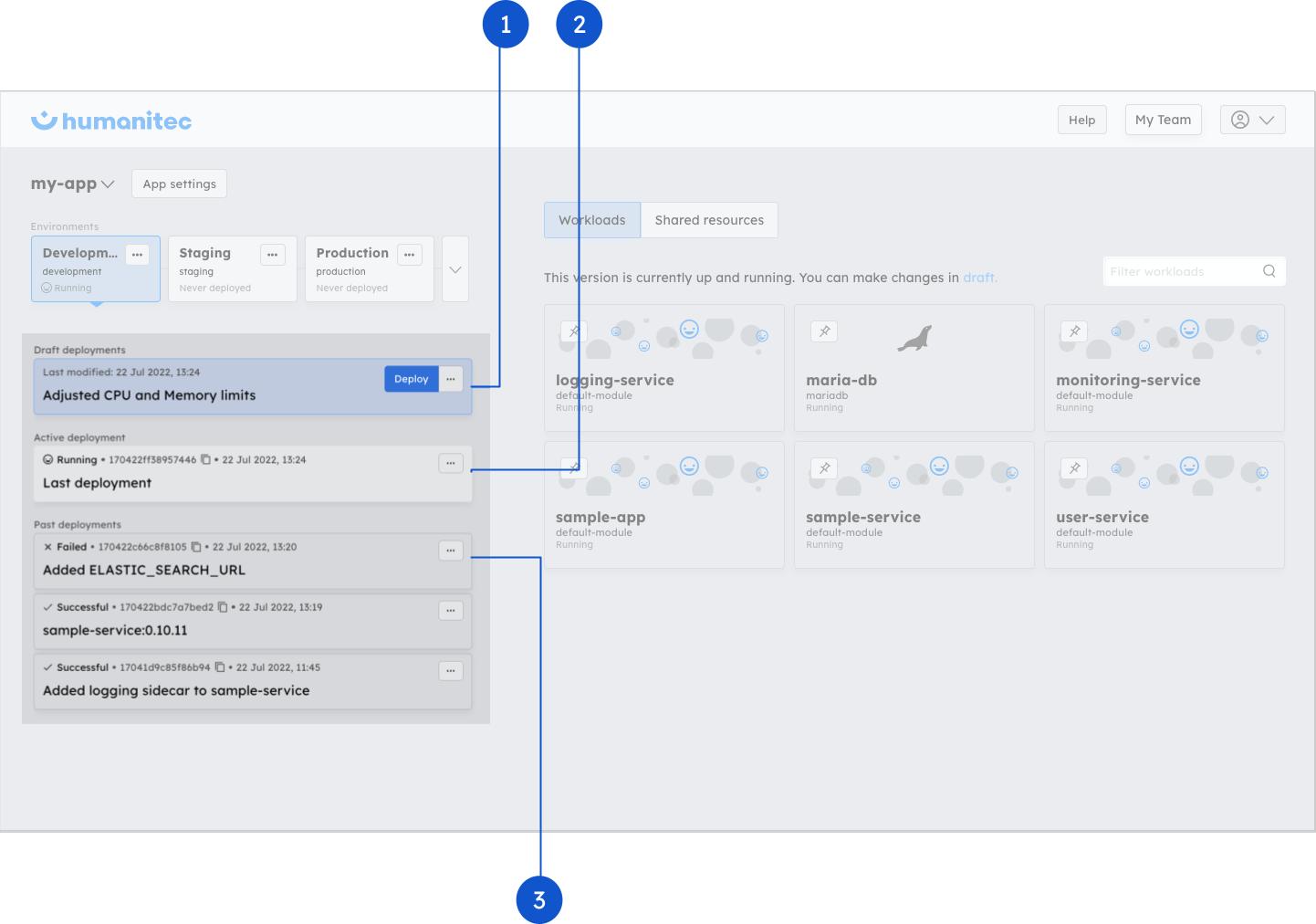

The Draft & Deployment list

The Draft & Deployment list is split into 3 sections:

  1. The active Draft. holds proposed changed for the next deployment. When this item is selected, the Workloads and Shared Resources area becomes editable.

  2. The Active deployment is what is currently deployed in the active Environment. When selected, the Workload and Shared Resources area shows the status of the workloads and resources currently running in the active Environment.

  3. The Past deployment are all previous deployments that have occurred in the active Environment. When selected, the Workloads and Shared Resources area shows the configuration of the app at the time of that deployment.

You can find more information on how to work with Apps here.
